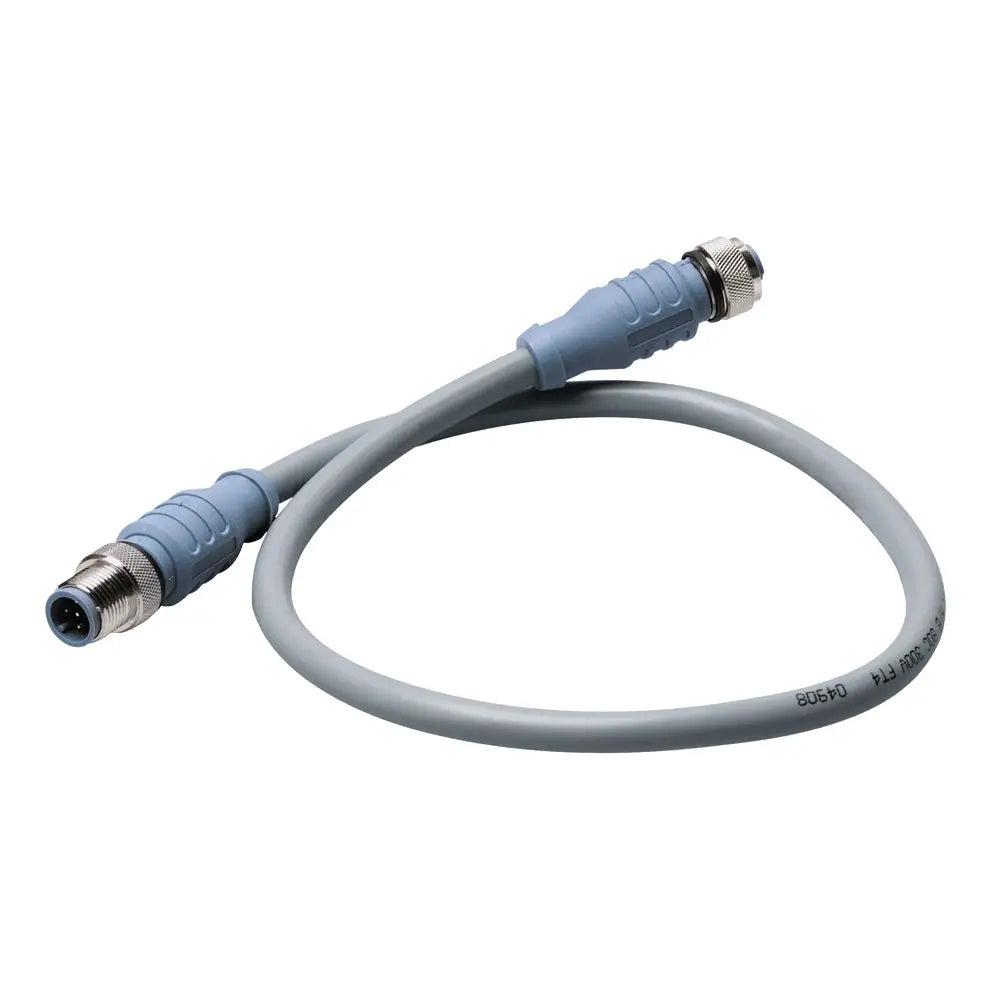

Maretron Micro Double-Ended Cordset - 4 Meter [CM-CG1-CF-04.0]

Name: Maretron Micro Double-Ended Cordset - 4 Meter [CM-CG1-CF-04.0]
Brand: Maretron
SKU: bpm-33358
Price: 39 USD
Availability: OutOfStock

$39.00 USD

~~$0.00 USD~~ $39.00 USD

Sale Sold out

Shipping calculated at checkout.

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59?Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V
Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4

NMEA: NMEA 2000 Approved

Specifications:

Cable Length (Feet): 13'
Box Dimensions: 1"H x 7"W x 7"L WT: 0.65 lbs
UPC: 786788837105
